2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine

2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine

2-phase stepper driver for CNC

high voltage stepper motor driver

Nema42 stepper driver 110V-240V

Place of Origin:

Shenzhen, China

Brand Name:

ZEROONR-Control

Certification:

CE ROHS

Model Number:

P2260

Document:

P2260 Datasheets.pdf

Contact Us
Request A Quote
2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine
2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine
Product Details
Motor Type:
Stepper Motor,DC Motor,Hybrid
Weight:
1.55kg
Name:
DM3722 Stepper Motor Driver,7.2A, 86 110 130 Digital Stepping Motor Driver, High Voltage Stepper Motor Dirver
Application:
Stepper Motor,57,contor Board,Nema23/24/34/42 Two Phase Stepper Motors,all Kinds Of CNC Machine
Color:
White
Certification:
CE,ROHS
Control Mode:
Pulse + Direction,modbus Remote,manual Input,DIR/Pulse + CW/CCW
Voltage Range:
DC110V-240V
Current Range:
2.4-7.2A (9A Max)
Matched Motor:
86mm 110mm 130mm Flange Nema34,nema42 Motor
Advantage:
Speed Stability And Control Convenient,no Need Computer Or Pulse Generator To Drive Stepper Motor
Currenting Setting:
16 Channel
Upmost Microstep:
60000ppr
Highlight:

2-phase stepper driver for CNC

,

high voltage stepper motor driver

,

Nema42 stepper driver 110V-240V

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
US$47/pcs
Packaging Details
1pcs/box, 30 boxes/carton
Delivery Time
3-7 days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
100 pcs/day
RELATED PRODUCTS
Good price Factory Custom Pure Copper 30W 50W Toroidal Transformer 110V 220V 230V 240V To 9V 12V 15V 18V 24V 36V 48V 60V For Stepper Motors online

Factory Custom Pure Copper 30W 50W Toroidal Transformer 110V 220V 230V 240V To 9V 12V 15V 18V 24V 36V 48V 60V For Stepper Motors

Get Best Price
Good price Factory direct sales DM556 5.6A 2 Phase DSP Digital Stepper Motor Driver For Nema23 42 57 Stepper Motor Controller online video

Factory direct sales DM556 5.6A 2 Phase DSP Digital Stepper Motor Driver For Nema23 42 57 Stepper Motor Controller

Get Best Price
Good price DM542 DM556 Replaces M556 2 Phase Low-noise DSP Digital Stepper Motor Driver For Nema17 Nema23 42 57 Stepper Motor Controller online video

DM542 DM556 Replaces M556 2 Phase Low-noise DSP Digital Stepper Motor Driver For Nema17 Nema23 42 57 Stepper Motor Controller

Get Best Price
Good price Integrated Stepper Driver Module IC42 IO42 IC57 IO57 For 42mm 57mm Nema23 Motor Can Be Customized online

Integrated Stepper Driver Module IC42 IO42 IC57 IO57 For 42mm 57mm Nema23 Motor Can Be Customized

Get Best Price
Contact Us
+86 15986629397
yituoyou@gmail.com
Contact Now
Product Description
2P2260/HB2722 2-Phase & 3XP2260/HB3722 3-Phase High Voltage Stepper Drivers
High-performance pulse stepper drivers designed for 110V-240V operation, compatible with NEMA 34, 42, and 52 motors for CNC machinery and industrial automation applications.

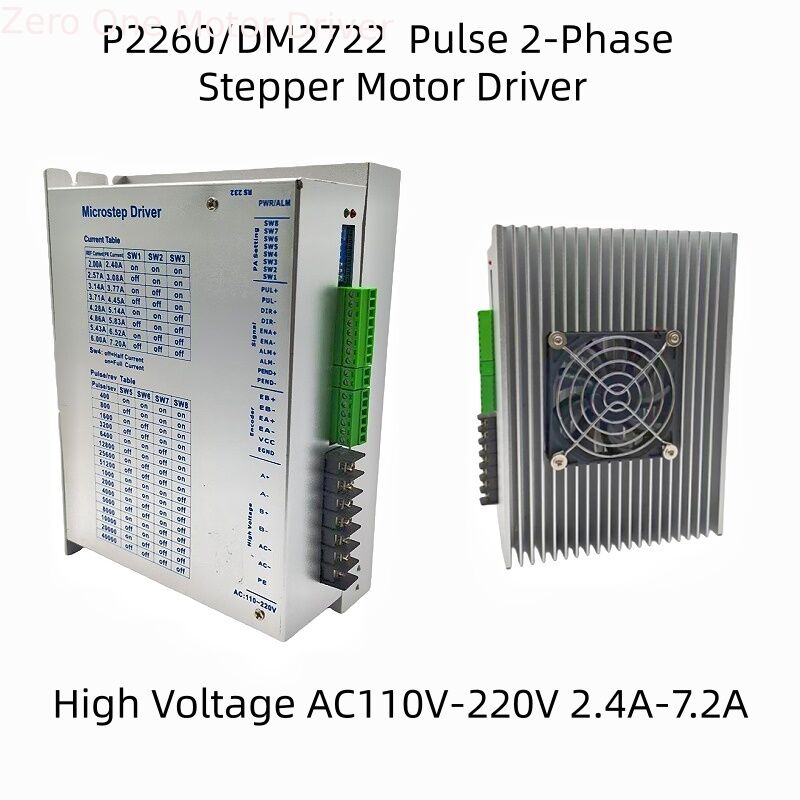

2P2260/HB2722 2-Phase High-Voltage Stepper Driver
Engineered for driving 2-phase hybrid stepper motors (4-lead or 8-lead configuration).
  • Input Voltage: AC 110V - 220V (Direct AC input, 220V ±10%)
  • Output Current: 1.2A - 7.0A (Peak), adjustable via 16-level DIP switches
  • Compatible Motors: NEMA 34, 42, 52 (86, 110, 130 series) 2-phase motors
  • Microstep Resolution: Up to 40,000 steps/revolution with 16 levels of constant torque microstepping
  • Signal Interface: Compatible with 5V - 24V logic signals (no external resistor required)
  • Key Feature: Utilizes AC servo control principles for exceptionally smooth low-speed operation with minimal vibration

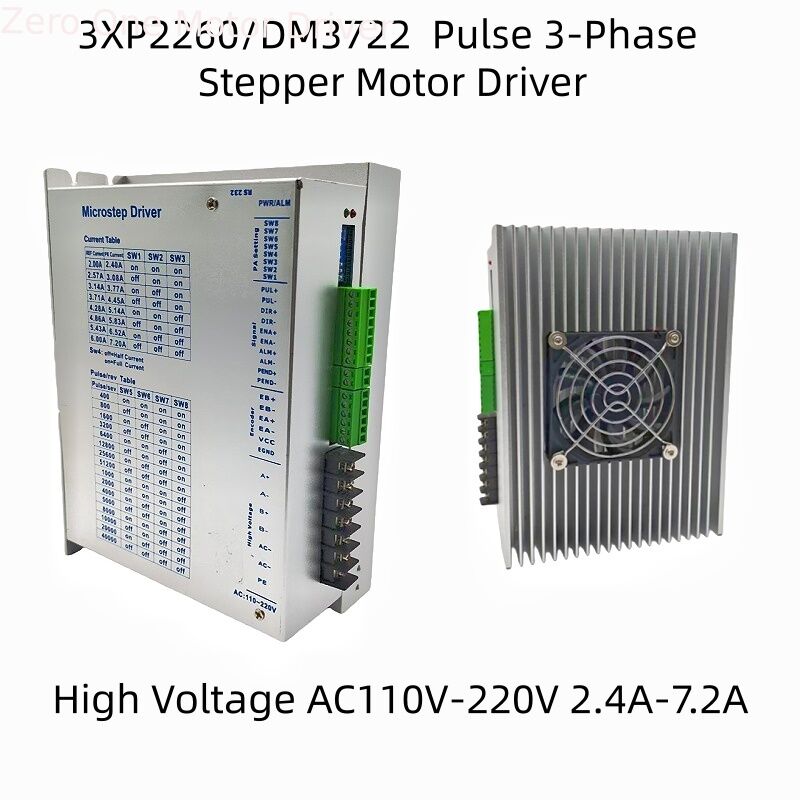

3XP2260/HB3722 3-Phase High-Voltage Stepper Driver
Designed for driving 3-phase hybrid stepper motors (3-lead configuration), offering superior high-speed performance with reduced torque loss and fewer resonance points compared to 2-phase systems.
  • Input Voltage: AC 110V - 220V (Direct AC input, 220V ±10%)
  • Output Current: 1.2A - 7.0A (Heavy-duty versions available up to 9A-10A)
  • Compatible Motors: NEMA 34, 42, 52 (86, 110, 130 series) 3-phase motors
  • Microstep Resolution: Up to 60,000 steps/revolution
  • Pulse Frequency: Maximum response frequency of 200kHz - 500kHz
  • Key Feature: Superior high-speed performance, lower torque ripple, and quieter operation
Technical Parameter Comparison
Parameter 2P2260/HB2722 (2-Phase) 3XP2260/HB3722 (3-Phase)
Motor Phase 2-Phase 3-Phase
Power Input AC 110-220V (Direct AC input, 220V ±10%) AC 110-220V (Direct AC input, 220V ±10%)
Peak Current 1.2A - 7.0A 1.2A - 7.0A
Microstep Range 400 - 40,000 steps/rev 400 - 60,000 steps/rev
Signal Voltage 5V - 24V Adaptive 5V - 24V Adaptive
Protection Overvoltage, Overcurrent, Phase Error Overvoltage, Overcurrent, Phase Error
Typical Applications CNC routers, Milling machines Packaging machinery, Heavy automation
Critical Selection Guidelines
  1. Motor Compatibility: This is the most critical factor. For motors with 3 wires, you must select the HB3722. For motors with 4 or 8 wires, choose the HB2722.
  2. Safety Precautions: Both drivers connect directly to AC 220V high voltage. Always disconnect power before wiring and ensure proper chassis grounding.
  3. Current Configuration: Set the peak current at approximately 1.1-1.2 times the motor's rated current (RMS) to ensure optimal torque performance without motor overheating.

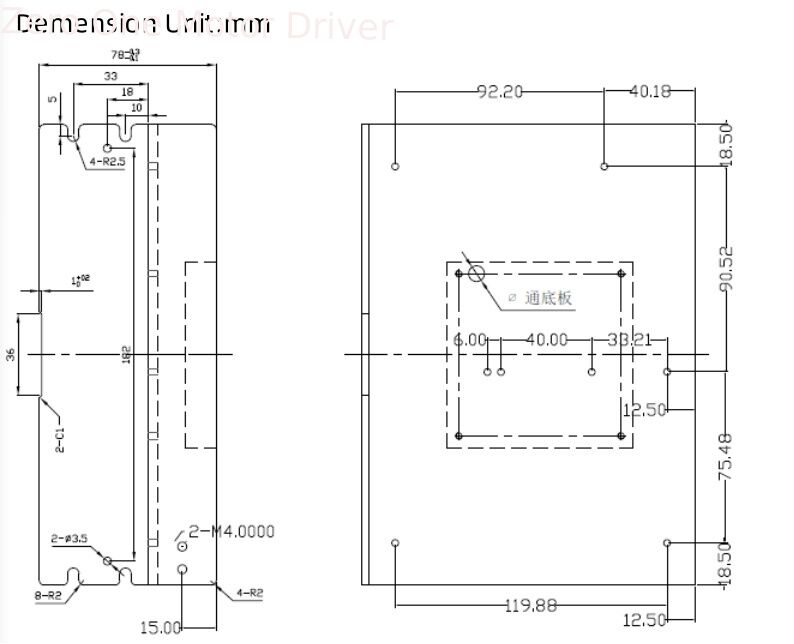

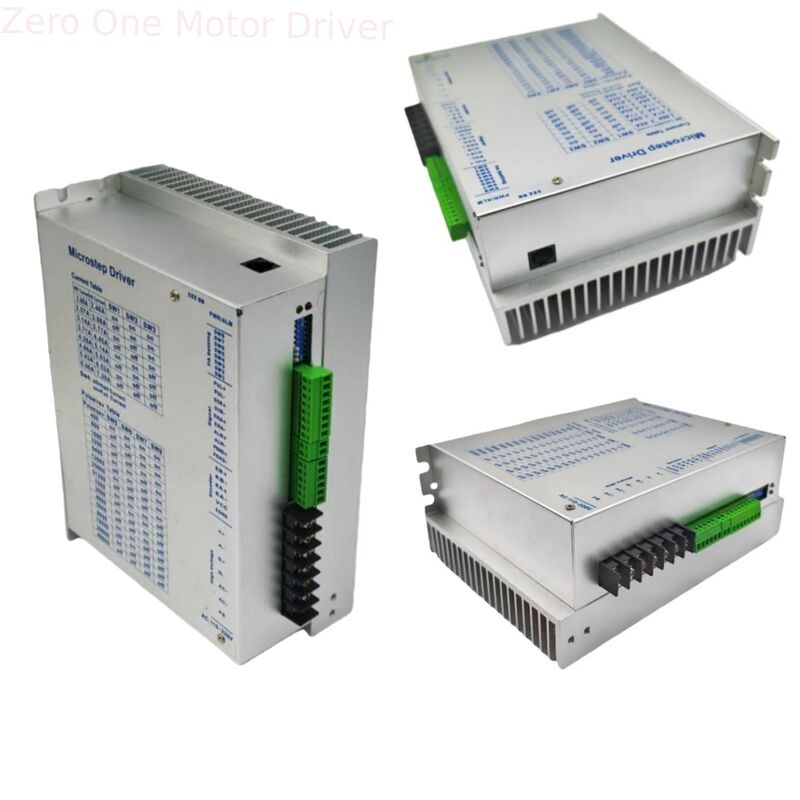

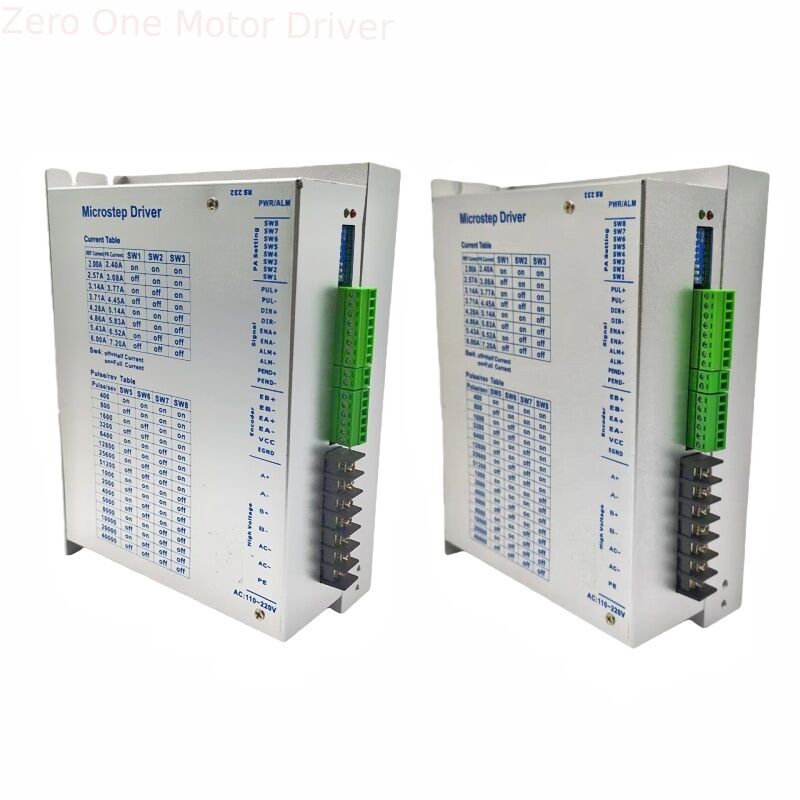

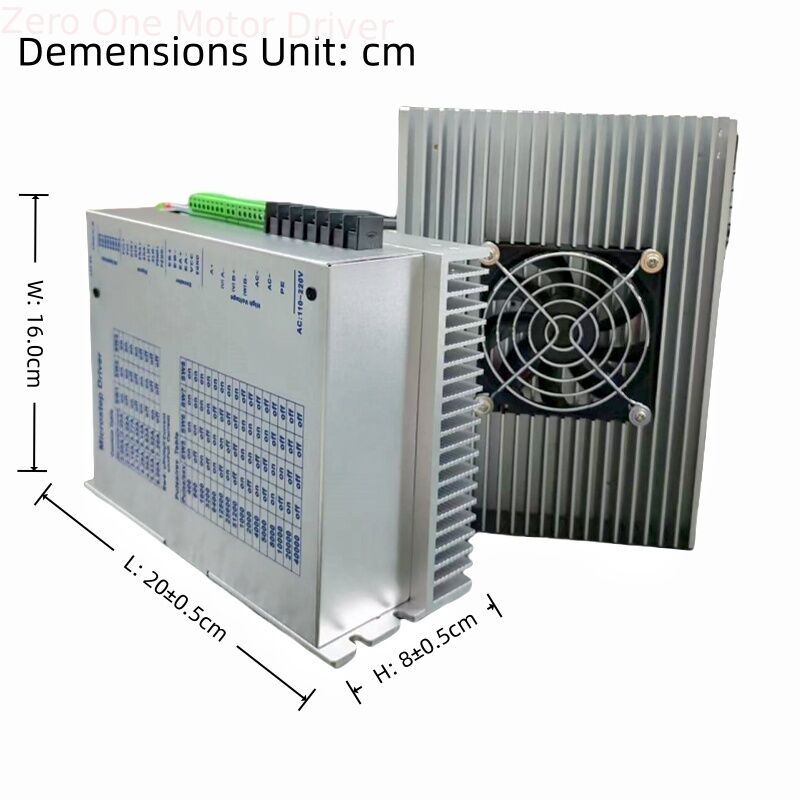

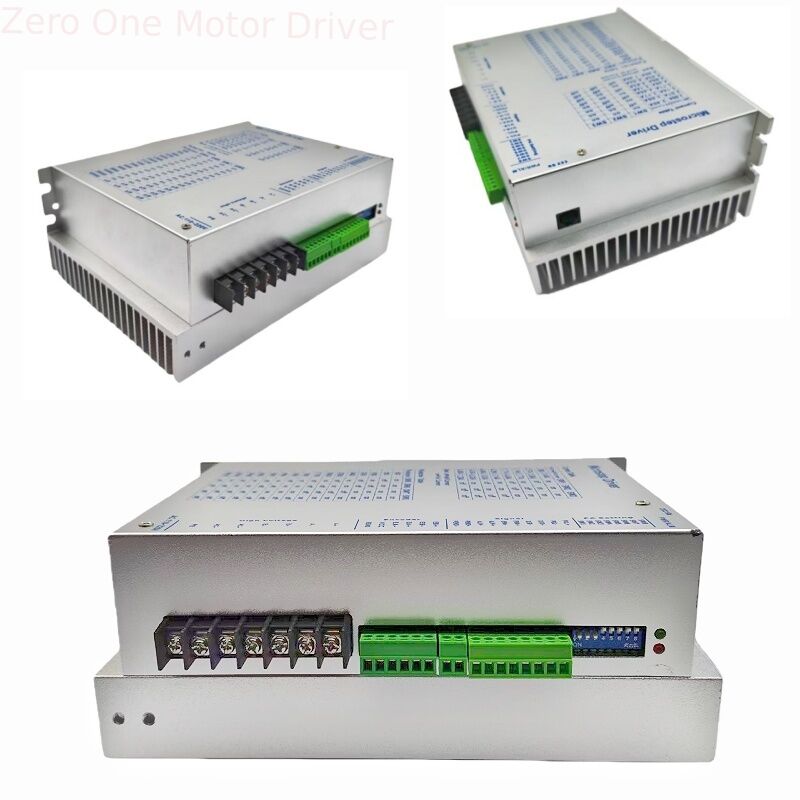

Mechanical Dimensions and Product Images
2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 0 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 1 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 3 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 4 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 5 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 6 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 7
