Place of Origin:
Shenzhen,China
Brand Name:
ZEROONE-Control
Certification:
CE,ROHS,EMC
Model Number:
EC42/EO42
Document:

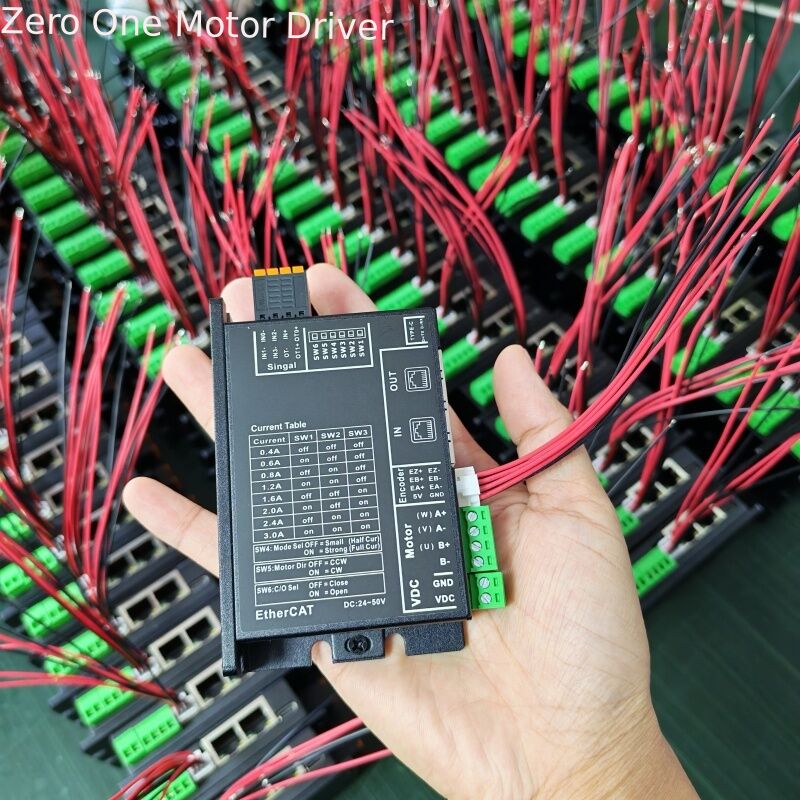

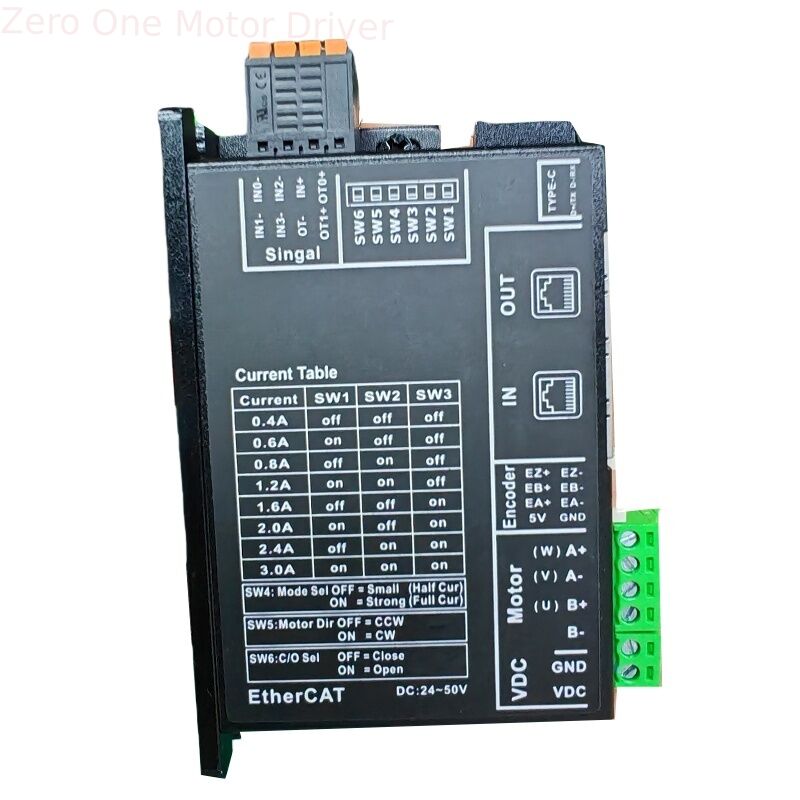

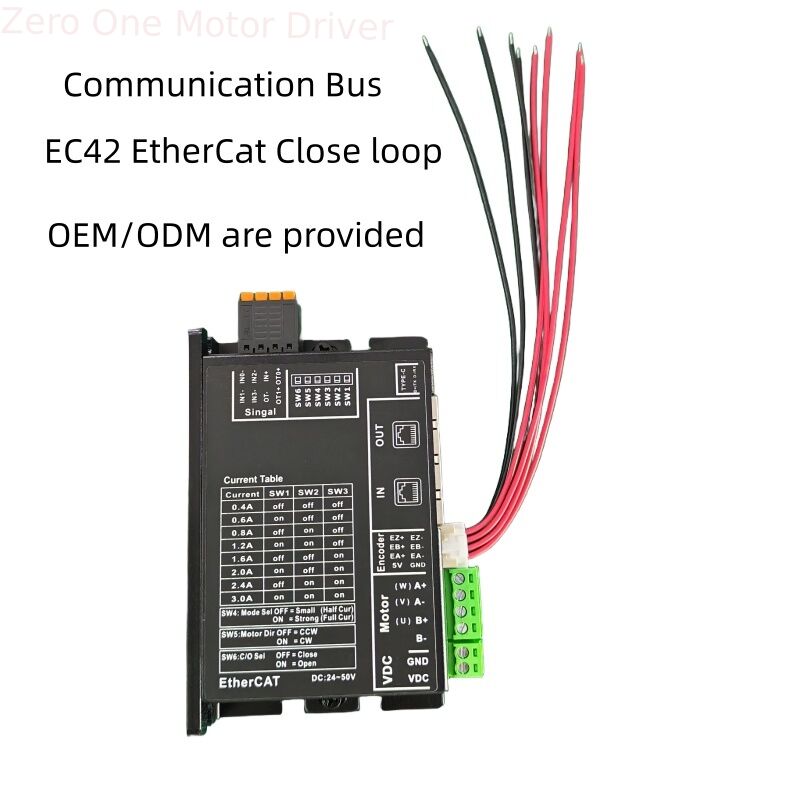

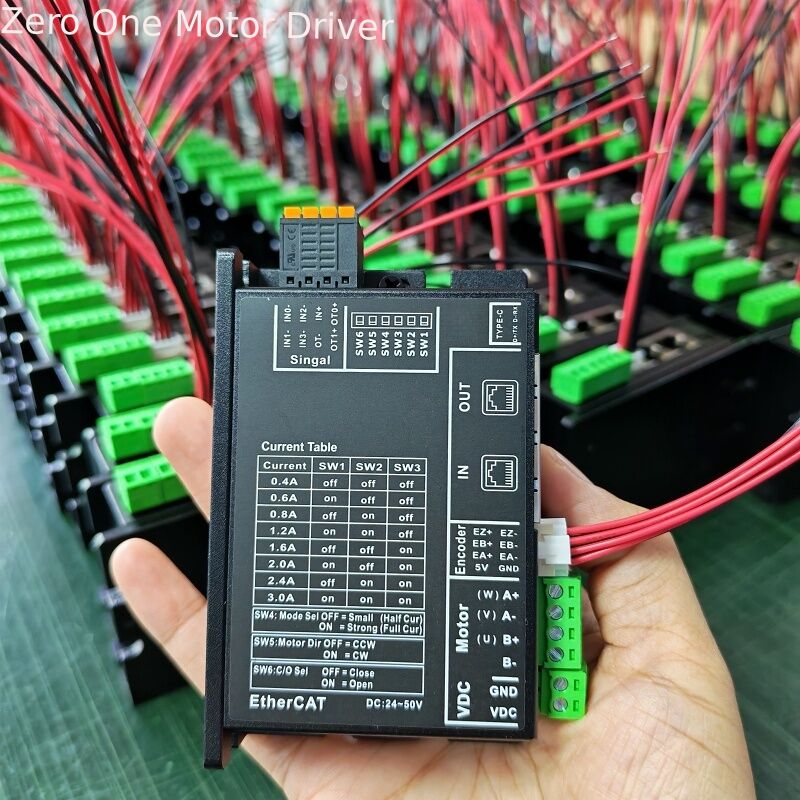

EC42 EtherCAT Stepper Driver for NEMA17(42) Motor
This is an EtherCAT fieldbus 2-phase stepper driver designed for NEMA17 42 frame stepper motors. It follows CoE & CiA402 protocol with 100Mbps real-time communication.
- Control modes: PP, PV, CSP, HM
- Power supply: DC 24~50V
- Output current: 0.2~3.0A adjustable

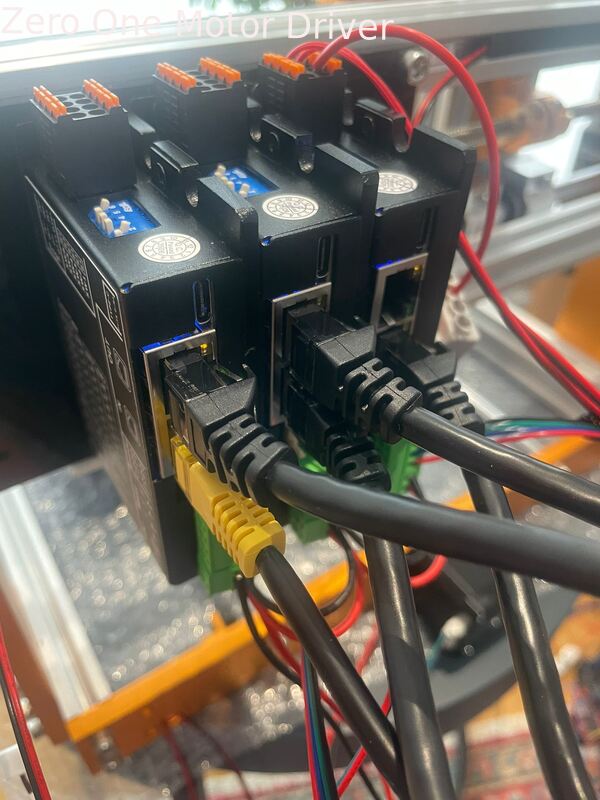

- Dual RJ45 port for daisy-chain multi-axis network
- DIN rail mounting, compact size 104x70x24.5mm
- Two versions: open-loop EO42 & closed-loop EC42 with encoder feedback. The EC42/EO42 EtherCAT bus-type stepper motor drives manufactured by You Yituo are compatible with both open-loop and closed-loop systems.
Built-in anti-resonance algorithm and auto current reduction to reduce motor heat and vibration. Widely used in dispensing machines, PCB equipment, small automation sliding tables.
