Home > Products > Open-loop Stepper system >
ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors

ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors

hybrid stepper motor driver 4.2A

Nema23 Nema24 stepper driver

stepper motor driver 20V-80V

Place of Origin:

China

Brand Name:

ZEROONE-Control

Certification:

CE ROHS

Model Number:

DM542

Document:

P430 Datasheets.pdf

Contact Us
Request A Quote
ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors
ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors
Product Details
Shaftdiameter:
5mm Or 6.35mm
Drivemethod:
Pulse And Direction
Current:
1.0A To 4.2A
Mountingtype:
Flange Mount
Motortype:
Stepper Motor Driver
Productname:
Open-loop Stepper System
Connectortype:
4-pin Or 6-pin Connector
Voltage:
20V To 80V DC
Max Speed:
Up To 1000 RPM
Operatingtemperature:
-20°C To 50°C
Highlight:

hybrid stepper motor driver 4.2A

,

Nema23 Nema24 stepper driver

,

stepper motor driver 20V-80V

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
US$8/pcs
Packaging Details
Carton
Delivery Time
2-8 days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
500pcs/day
RELATED PRODUCTS
Good price P430/DM430 Stepper Driver with 0.14-3A Current and DC12-40V Voltage for Nema8/Nema11/Nema14/Nema17 Motors online

P430/DM430 Stepper Driver with 0.14-3A Current and DC12-40V Voltage for Nema8/Nema11/Nema14/Nema17 Motors

Get Best Price
Good price ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors online Video

ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors

Get Best Price
Good price 2P542/2P2405 2-Axis Dual Channel Stepper Motor Driver 24V-80V 1.0-4.2A For 2-Phase Nema23 57mm Hybrid Stepper Motor online Video

2P542/2P2405 2-Axis Dual Channel Stepper Motor Driver 24V-80V 1.0-4.2A For 2-Phase Nema23 57mm Hybrid Stepper Motor

Get Best Price
Good price 2-Phase Open-loop DM542/DM542-IO Stepper Motor Driver 32-bit DSP 1.0-4.2A DC 24-80V For Nema23 57mm Stepper Motor online Video

2-Phase Open-loop DM542/DM542-IO Stepper Motor Driver 32-bit DSP 1.0-4.2A DC 24-80V For Nema23 57mm Stepper Motor

Get Best Price
CONTACT US
+86 15986629397
yituoyou@gmail.com
Contact Now
Product Description
DM542 4.2A Stepper Motor Driver
The ZEROONE-Control DM542 is a 2-phase digital open-loop stepper driver with DC20-80V input, 1.0-4.2A peak current, and 16-step microstepping (200-25600 steps/rev). Designed for optimal performance with 42/57 (NEMA17/23) motors, it offers low noise, minimal heat generation, and excellent cost performance.
Technical Specifications
Power & Performance
  • Power Supply: DC20V-80V (24-48V recommended, power supply ≥100W)
  • Output Current: 1.0-4.2A peak (8-level adjustable via DIP switch)
  • Microstepping: 16 levels (200/400/800/1600/3200/6400/12800/25600 steps/rev)
Control & Protection
  • Control Signal: 5V/24V compatible (switchable via DIP switch), PUL/DIR/ENA
  • Protection Functions: Overvoltage, undervoltage, overcurrent, phase-to-phase short circuit protection
  • Idle half-current mode for heat reduction
Key Features
  • Anti-resonance technology
  • Smooth filtering and auto-tuning
  • Low vibration and noise operation
Motor Matching Guidelines
Essential Matching Principles
  • Phase Current: Motor rated phase current ≤ Driver set current (preferably ≤4.0A)
  • Frame Size: 42mm (NEMA17) & 57mm (NEMA23) are optimal; 60mm (NEMA24) adaptable at low current
  • Voltage Range: Motor rated voltage within 18-50V range
  • Motor Type: 2-phase hybrid stepper motors (4/6/8 wires)
Recommended Motor Models
42mm (NEMA17) - Low Torque (≤0.8N*m)
  • Models: 42CM04/06/08 (0.4/0.6/0.8N*m, 1.0-2.0A current)
  • Universal: NEMA17 42*42mm, phase current 1.0-2.5A, torque 0.3-0.8N*m
  • Applications: 3D printers, small engraving machines, instruments, feeding mechanisms
57mm (NEMA23) - Medium Torque (0.8-3.0N*m)

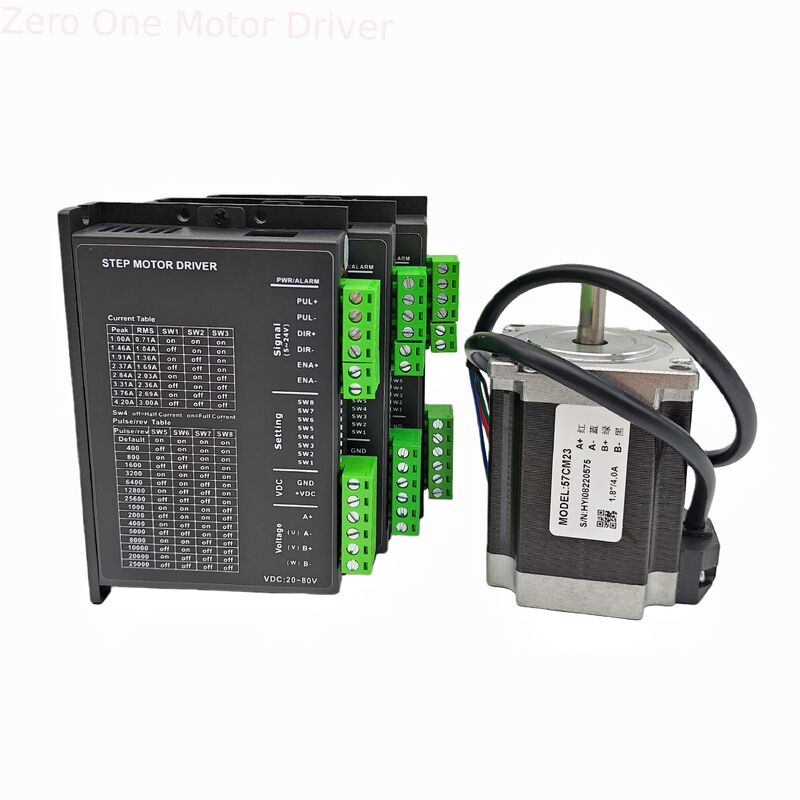

  • Models: 57CM13/22/23/26 (1.3/2.2/2.3/2.6N*m, 2.0-4.0A current)
  • Universal: NEMA23 57*57mm, phase current 2.0-4.0A, torque 1.0-3.0N*m
  • Applications: Engraving machines, dispensers, screw drivers, packaging machines, small CNC

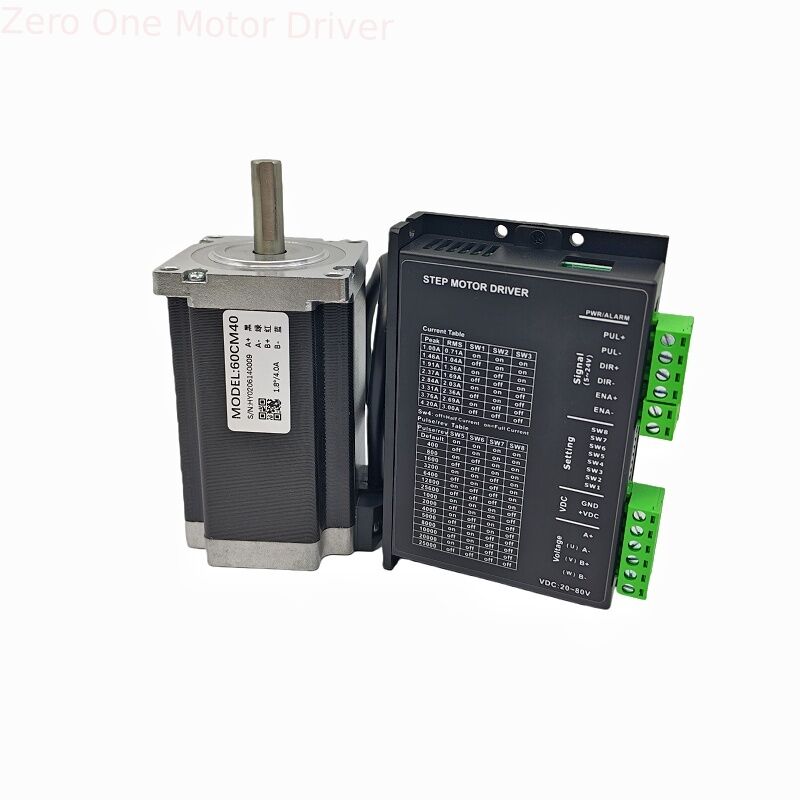

60mm (NEMA24) - High Torque (3.0-4.0N*m)
Use with caution: Recommended only for 60mm stepper motors with phase current ≤3.5A & torque ≤3.5N*m. Set current to 3.0-4.0A, avoid long-term full load, and enhance heat dissipation.

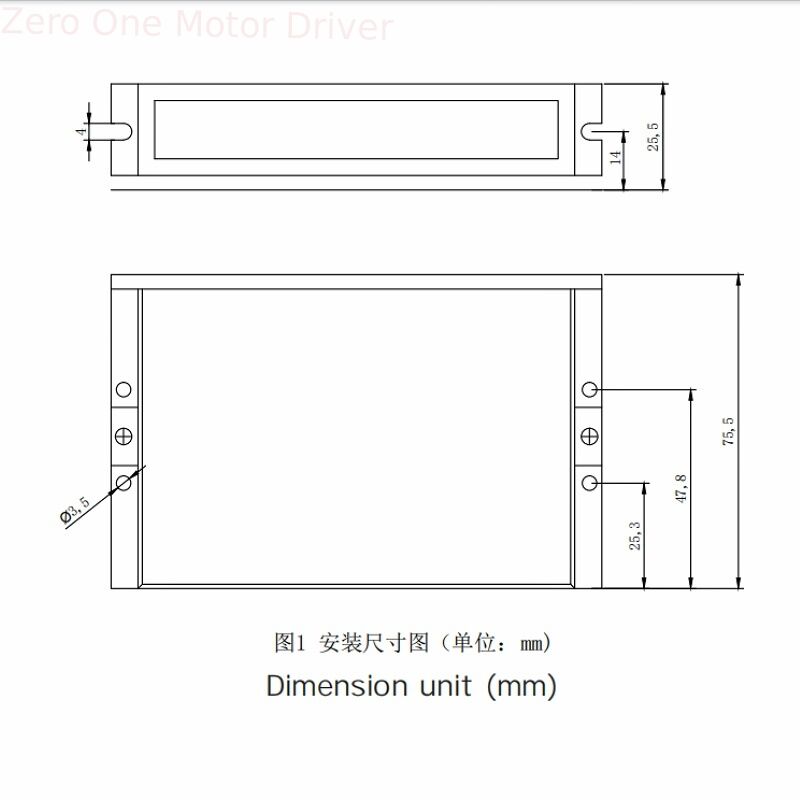

Configuration & Setup

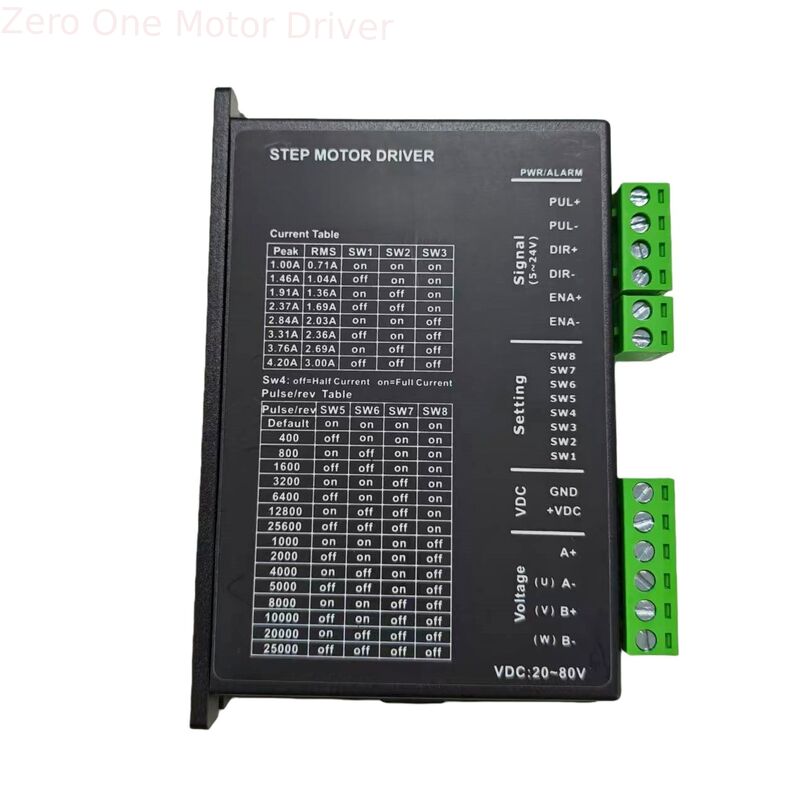

DIP Switch Settings
  • Current: Set to 80-100% of motor rated current (80% for small motors, 100% for large motors)
  • Microstepping: 12800/25600 for low-speed high precision; 1600/3200 for high speed
  • Signal: 24V for 24V system, 5V for 5V system; differential mode for better anti-interference
Installation Notes
  • Heat sink + small fan recommended when current ≥3.0A or for continuous operation
  • Test: Run no-load at low microstepping & low current first, then increase load gradually
  • Monitor temperature rise and noise during operation
Prohibited: 86mm stepper motors, motors with phase current >4.0A, voltage >50V/<18V
Application Scenarios
  • Small automation equipment: Dispensers, screw drivers, labeling machines, packaging machines
  • CNC equipment: Small engraving machines, laser cutting machines, CNC drilling machines
  • Office & instruments: 3D printers, plotters, testing instruments

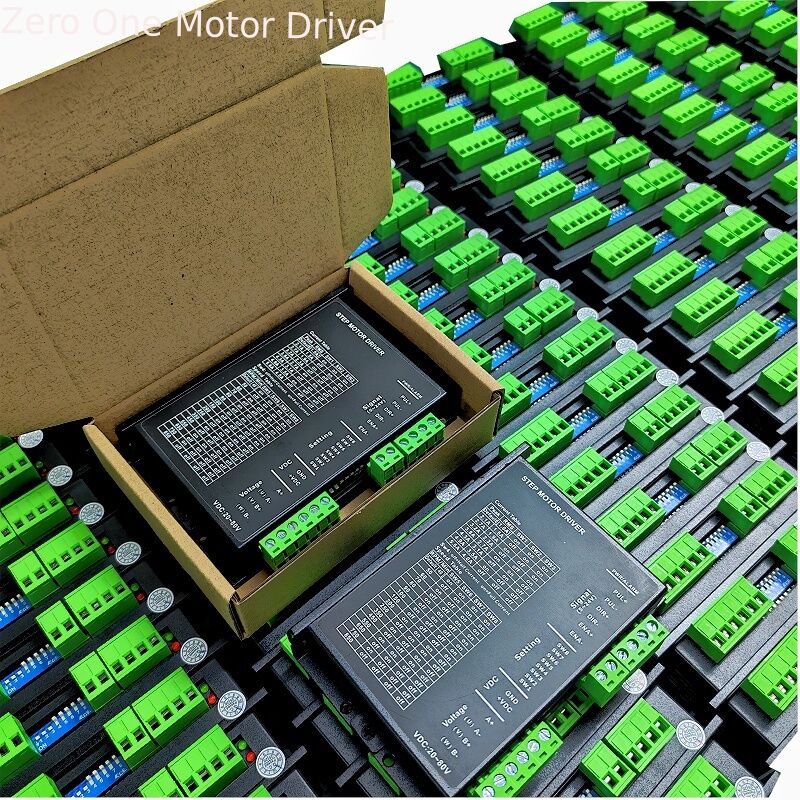

Product Images
ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors 0 ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors 1 ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors 2 ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors 3 ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors 4 ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors 5 ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors 6 ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors 7
