Place of Origin:
China
Brand Name:
ZEROONE Control
Certification:
CE ROHS
Model Number:
P430/DM430
Document:
Video

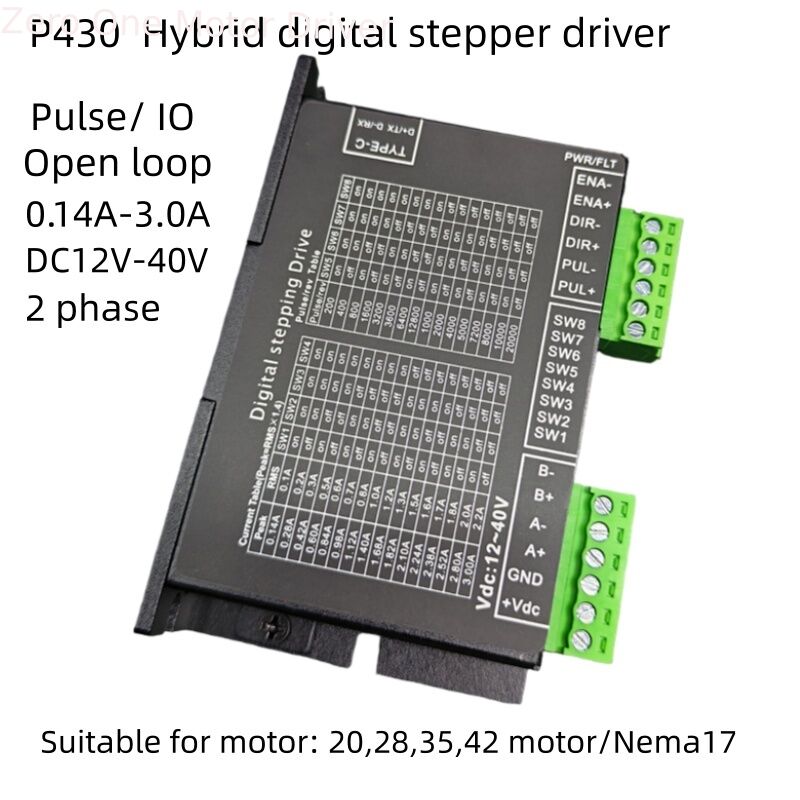

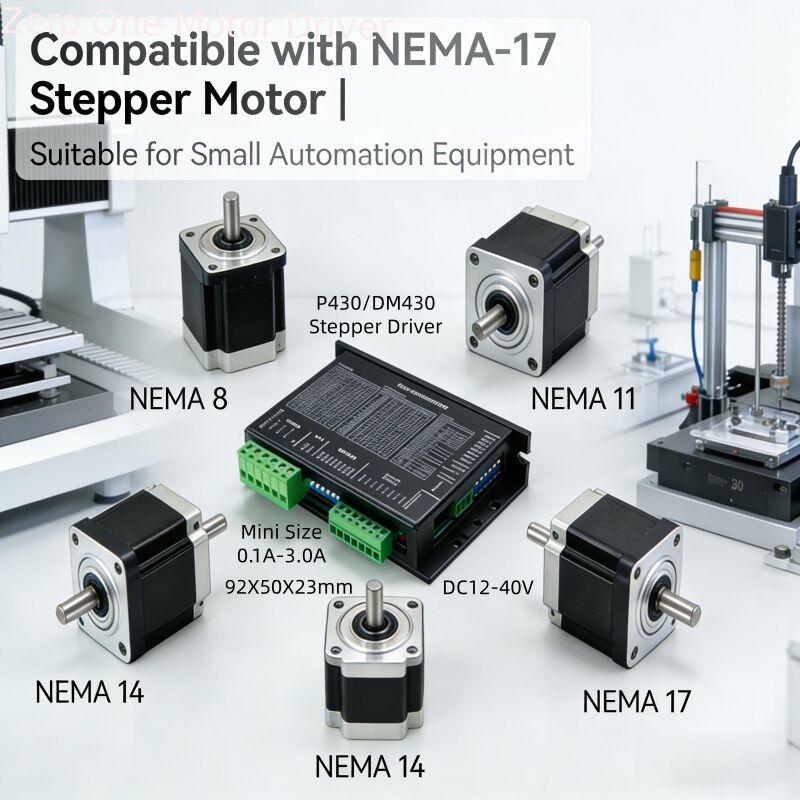

Applicable to: NEMA 8/11/14/16/17 (20/28/35/42mm) two-phase hybrid stepper motors (4/6/8 wires all compatible)
Matching principle: Motor rated current ≤3.0A, operating voltage 12-32VDC (24VDC recommended)
Typical models: 42mm stepper motors (e.g., 17HS series), 35/28/20mm small stepper motors
| Parameter | Specification |
|---|---|
| Supply Voltage | 12-32VDC (24VDC typical) |
| Output Peak Current | 0.1-3.0A (adjustable via DIP switches/software) |
| Microstepping Range | 200-51200ppr (1-256 microsteps) |
| Control Signal | 4.5-28VDC, optocoupler isolated, pulse width ≥1.5μs |
| Protection Functions | Overvoltage, undervoltage, overcurrent, overheat protection |
| Operating Temperature | -5℃～+50℃, Humidity 40-90%RH (no condensation) |

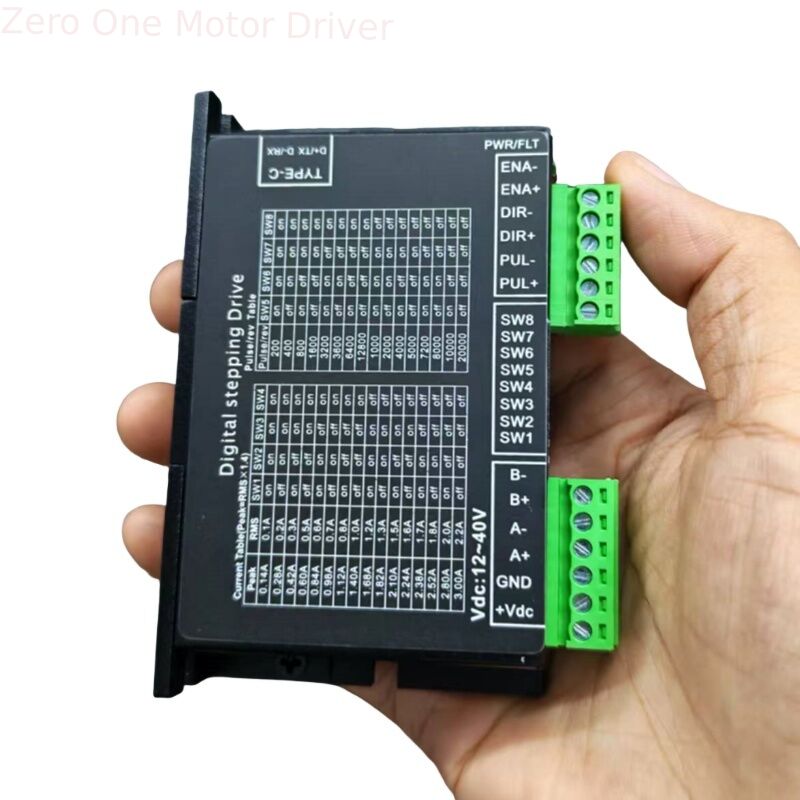

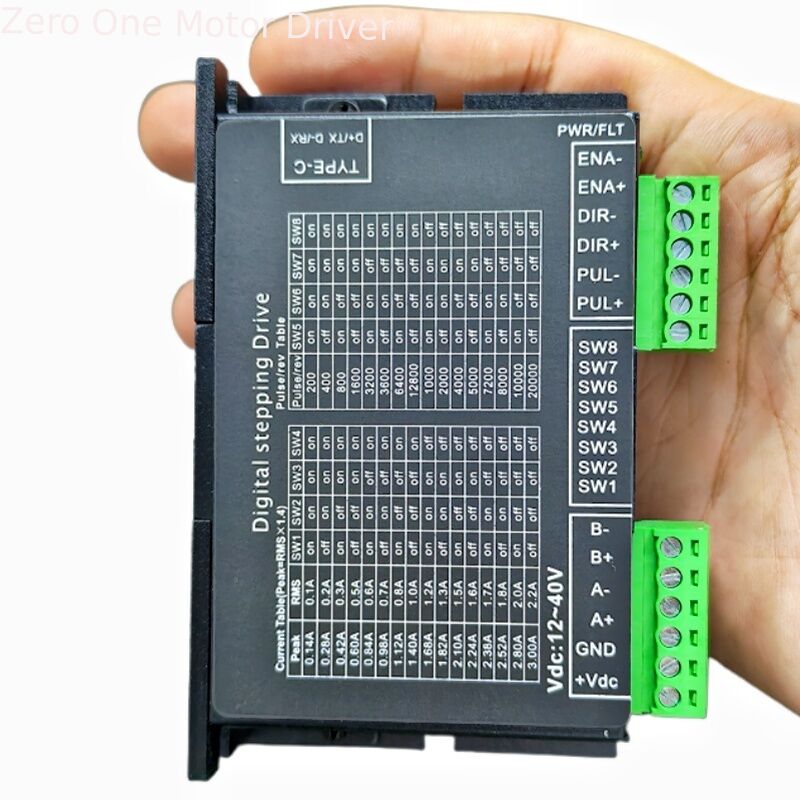

Driver terminals: A+, A-, B+, B-
4-wire motor: A+ (Red), A- (Green), B+ (Yellow), B- (Blue) (match with motor label)
6/8-wire motor: Series/parallel the same-phase windings (short-circuit same-phase terminals) first, then connect to A+/A-, B+/B-
PUL+ → PLC/Controller Pulse Output + (5-24V)
PUL- → Common GND
DIR+ → Direction Signal +
DIR- → Common GND
ENA+ (Optional) → Enable Signal + (enabled by default when floating)
ENA- → Common GND
Differential mode: Connect PUL+/PUL-, DIR+/DIR- to positive/negative terminals of differential signal
VCC → DC Power Supply Positive (12-32VDC)
GND → DC Power Supply Negative (common ground with control signal GND)
Current DIP switches (8/16-bit): Adjust in 0.1A steps up to 3.0A according to driver label
Microstepping DIP switches: Commonly used 16/32/64/128/256 microsteps, corresponding to 200/400/800/1600/3200/51200ppr
