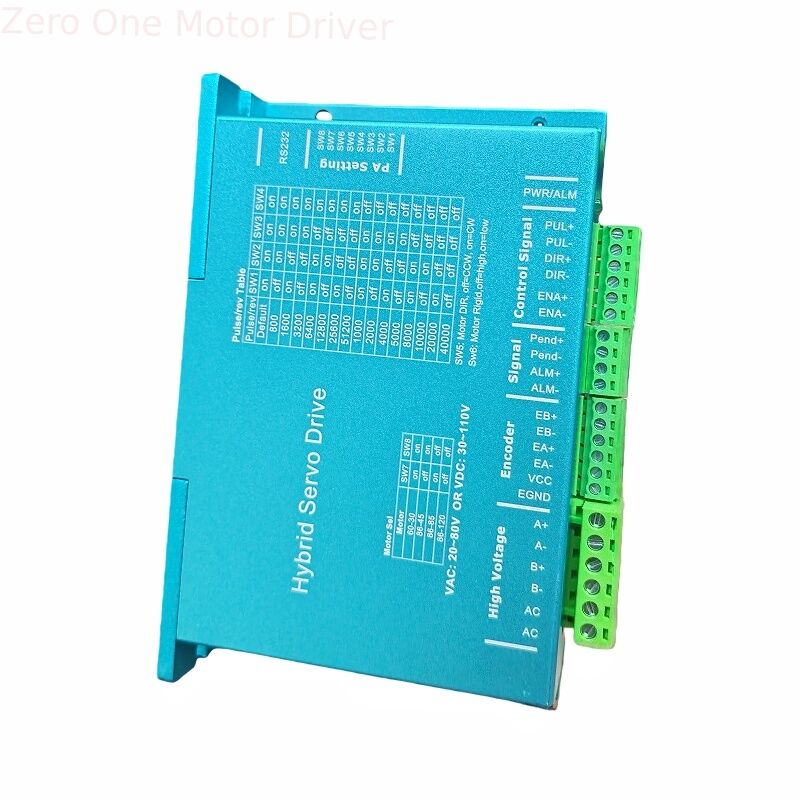

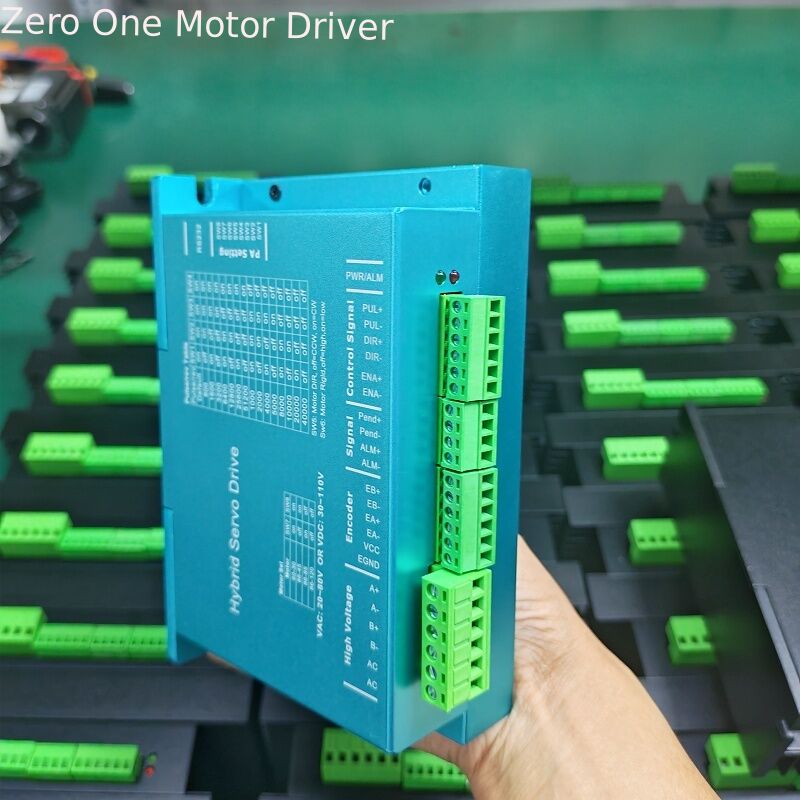

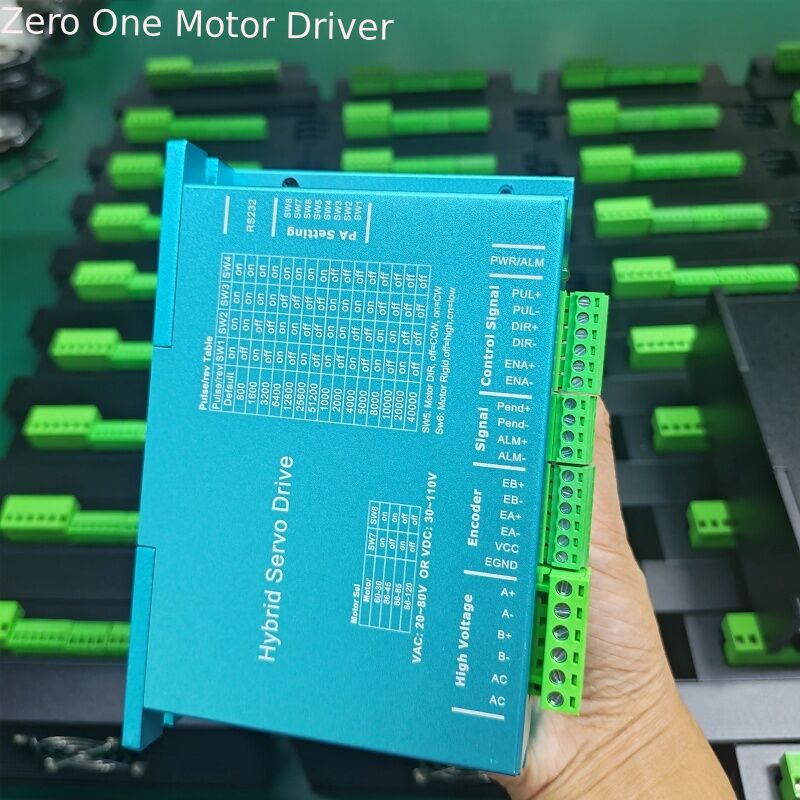

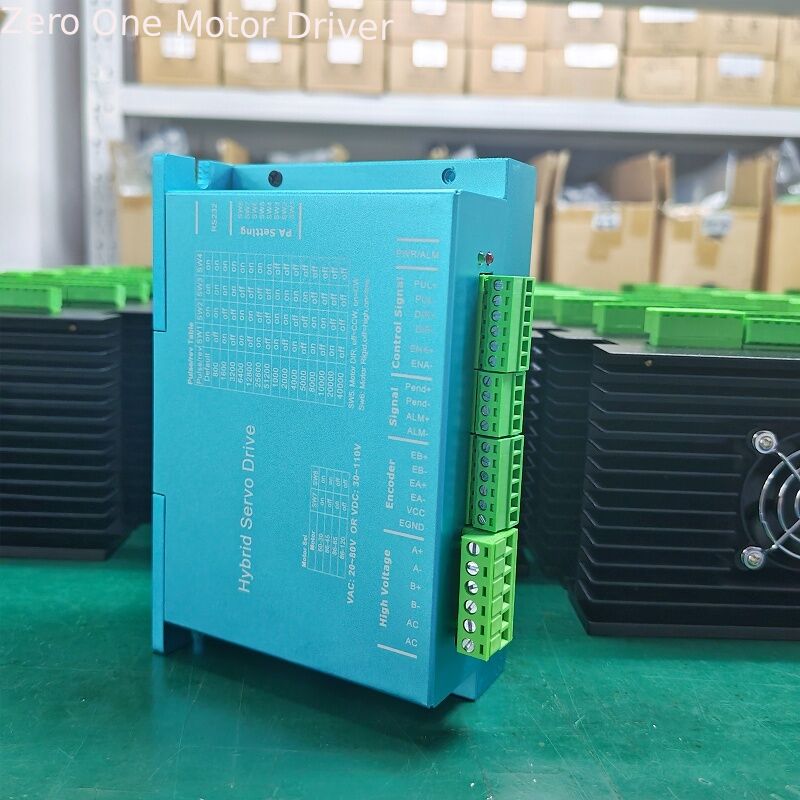

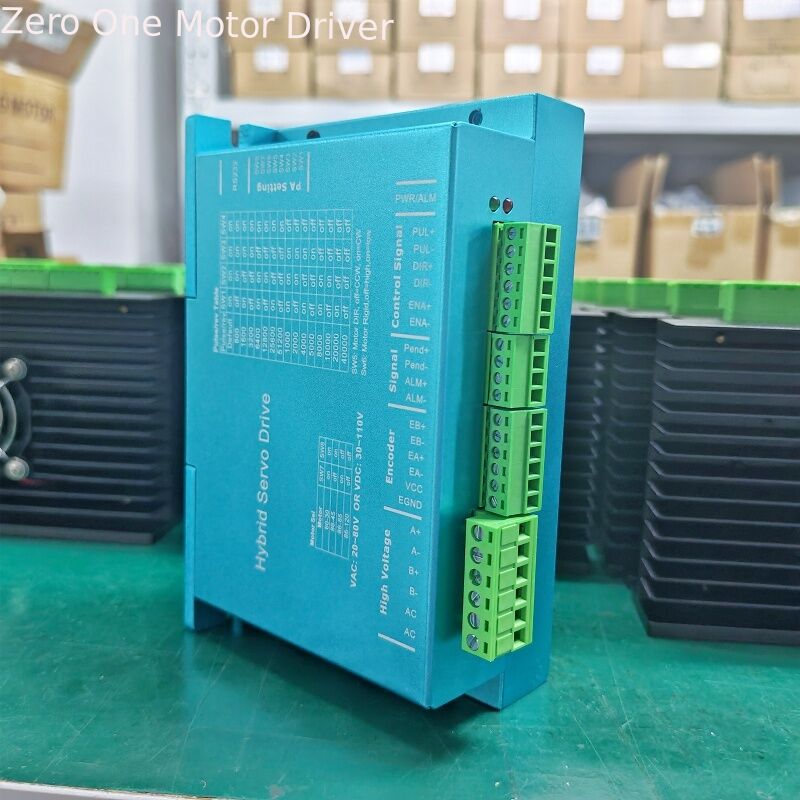

01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor

01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor

closed-loop stepper driver for Nema34 motor

2-phase PC86 stepper motor driver

HBS86H stepper driver with warranty

Place of Origin:

China

Brand Name:

ZEROONE-Control

Certification:

CE ROHS

Model Number:

PC86 / HBS86H

Document:

PC86 Datasheets.pdf

Contact Us
Request A Quote
01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor
01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor 01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor 01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor 01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor 01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor 01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor
Product Details
Productname:
PC86 Closed-loop Stepper Driver
Operatingtemperature:
-20°C To 50°C
Maxspeed:
Up To 3000 RPM
Drive Method:
Pulse/IO
Current:
2.4A To 7.2A
Application:
Positioning, CNC Machines, Robotics
Voltage:
DC20V To 80V, AC 30V To 110V
Matching Motor:
Nema34 4.5Nm 8.5Nm 12Nm Stepper Motor
Motortype:
Stepper Motor
Phase:
2-phase
Drivemode:
Microstepping
Highlight:

closed-loop stepper driver for Nema34 motor

,

2-phase PC86 stepper motor driver

,

HBS86H stepper driver with warranty

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
US$27/pcs
Packaging Details
Carton
Delivery Time
2-8 days
Payment Terms
Western Union,T/T,D/P,D/A,L/C
Supply Ability
500pcs/day
RELATED PRODUCTS
Good price 01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor online Video

01-control HBS86H HBS86HD Closed-loop 2-phase PC86 Stepper Driver For 4.5Nm 8.5Nm 12N.m Nema34 86mm Motor

Get Best Price
Good price Nema23 57mm Flange 2-phase Hybrid Stepper Motor for CNC Machines online

Nema23 57mm Flange 2-phase Hybrid Stepper Motor for CNC Machines

Get Best Price
Good price P430/DM430 Stepper Driver with 0.14-3A Current and DC12-40V Voltage for Nema8/Nema11/Nema14/Nema17 Motors online

P430/DM430 Stepper Driver with 0.14-3A Current and DC12-40V Voltage for Nema8/Nema11/Nema14/Nema17 Motors

Get Best Price
Good price ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors online Video

ZEROONE-Control DM542 4.2A DC20V-80V 2 Phase Hybrid Stepper Motor Driver For Nema23 57 And Nema24 60 Motors

Get Best Price
CONTACT US
+86 15986629397
yituoyou@gmail.com
Contact Now
Product Description
HBS86H / PC86 Closed-Loop Stepper Driver
The HBS86H / PC86 is a 2-phase hybrid servo drive that combines the simplicity of stepper drives with the precision and reliability of servo systems. This closed-loop stepper system with encoder provides a cost-effective upgrade path from traditional stepper drives while offering performance comparable to servo drives.
Core Specifications
Power Supply: AC 20~80V (built-in rectifier bridge) or DC 30~110V
Motor Compatibility: 57/86 series 2-phase hybrid stepper motors with 1000-line encoder
Rated Output Current: 8.2A
Max Pulse Frequency: 200kHz
Microstepping: Adjustable from 400 to 51200 steps
Control Signals: Supports single/double pulse, differential/single-ended
Key Features
  • Closed-Loop Control: Built-in encoder provides real-time feedback with position, speed, and current closed loops, eliminating step loss
  • High Efficiency: 32-bit DSP and vector control algorithm with independent static/dynamic current settings reduce motor heating and energy consumption
  • Easy Upgrade: Dimension and interface compatible with traditional 86 stepper drives, featuring DIP switch configuration and ProTuner software debugging via RS232
  • Reliable Performance: Superior high-speed torque characteristics with stable, low-noise operation
  • Comprehensive Protection: Overcurrent, overvoltage, overheating, and tracking error protection with LED alarm indicators
Application Scenarios
Ideal for engraving machines, laser cutting machines, marking machines, CNC machine tools, automatic assembly lines, 3D printers, and various automation equipment requiring high-precision positioning in electronic devices and medical instruments.
Selection Tip: Must be paired with closed-loop stepper motors featuring 1000-line encoders (such as Leadshine 86HS series) to achieve complete closed-loop functionality.
HBS86H vs HBS86 Comparison
Comparison Item HBS86H HBS86
Power Supply Mode AC 20~80V / DC 30~110V (built-in rectifier bridge) DC 24~70VDC only
Wiring Difficulty Low - direct AC power connection available High - requires external DC power supply or rectifier
Rated Output Current 8.2A 8.2A
Motor Compatibility 57/86 series closed-loop stepper motors with 1000-line encoder 57/86 series closed-loop stepper motors with 1000-line encoder
Control Functions Identical - multi-microstepping, pulse control, software debugging Identical - multi-microstepping, pulse control, software debugging
Applicable Scenarios Scenarios without fixed DC power supply, small equipment, simple wiring Industrial scenarios with stable DC power supply, automation production lines
Core Advantages Flexible power supply, stronger adaptability, reduced wiring costs More stable DC power supply, suitable for precision applications
Note: Except for power supply mode, both models offer identical control performance, motor compatibility, protection functions, and operation modes. Selection should be based on available power supply configuration.
